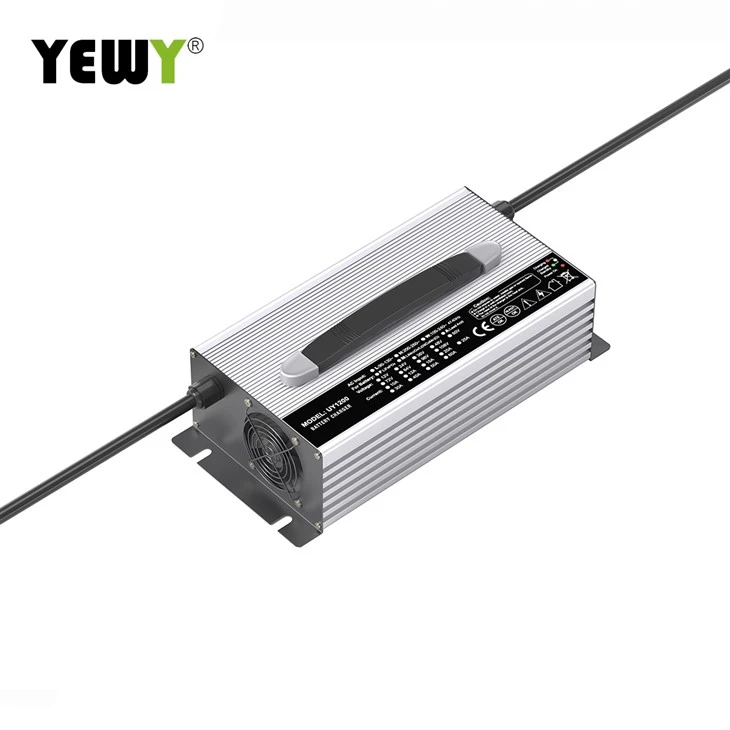

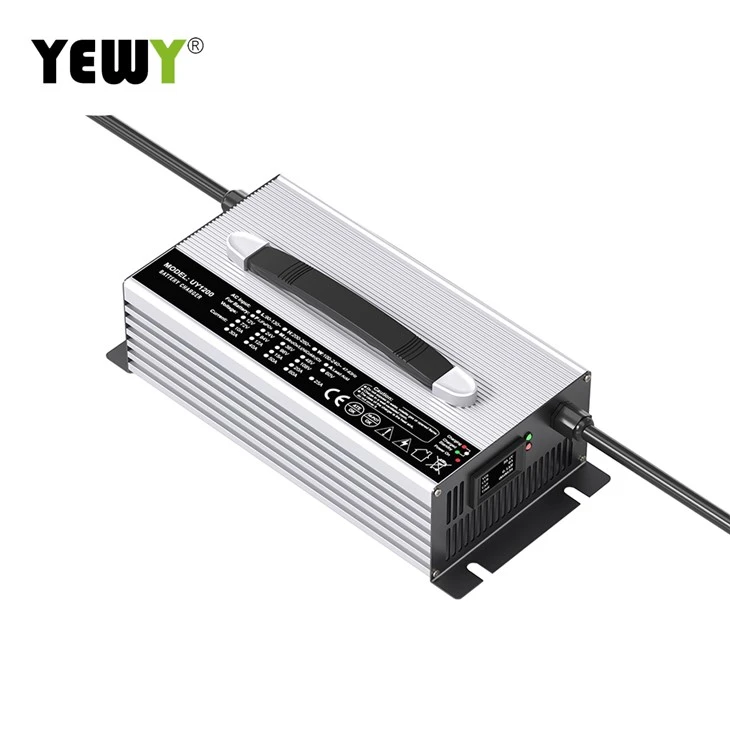

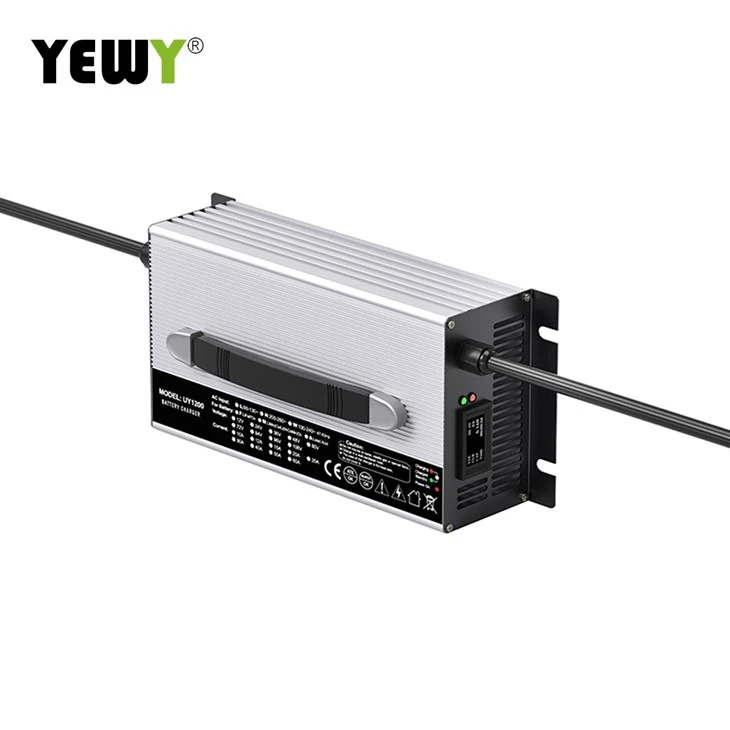

22.2 V Lithium Ion Battery Charger

If you want to maintain the battery, it is necessary to learn several charging methods, which will help to prolong the life of your battery;
Correct charging sequence: "Plug the battery first, then the power supply" when charging, and "pull out the battery end first, then the input end" when unplugging, this sequence will cause less damage to the battery and 12s lithium battery charger.

The 22.2 v lithium ion battery charger can be used in an environment with a temperature of -5°C to +40°C and a relative humidity of 5% to 95%. Use outside these conditions and the charger may be damaged or not work.

UY1200 2

The specifications of UY1200 Charger

Specification	Li-ion	Lifepo4	Lead acid	Charging current
12V 50A	12.6V/16.8V	14.6V	14.7V	50A
24V 35A	25.2V/29.4V/ 33.6V	29.2V	29.4V	35A
36V 25A	42V/46.2V	43.8V	44.1V	25A
48V 20A	50.4V/54.6V/58.8V	54.75V/58.4V	58.8V	20A
60V 15A	63V/67.2V/71.4V	73V	73.5V	15A
72V 12A	79.8V/84V	87.6V	88.2V	12A

feature:

Fully automatic conversion of CC, cv (lithium ion/LiFePo4) and Float/Cutoff (lead acid)

Accurate voltage and current limit to ensure full charge and avoid overcharge

Protection: over current, over voltage, short circuit and reverse polarity

Protective function

. Output overcurrent protection

. Output overvoltage protection

. Output short circuit protection

. Over-Temperature protection

. Output reverse connection protection

24 volt lifepo4 battery charger

72v lifepo4 charger

Notice

（1) When using the 22.2 v lithium ion battery charger, children should be avoided from approaching and touching it.

(2) It is strictly forbidden to store flammable and explosive items near the charger.

(3) When cleaning the charger, it is recommended to use a clean cloth with a small amount of alcohol to wipe it. Do not rinse it with water directly.

battery charger manufacturer

smart lithium battery charger

Q1. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 6-8 days to arrive. Airline and sea shipping is also optional.

Q2. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q3. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

To understand if the charger is still charging after it turns green and when it is unplugged, we first need to understand the battery process. At present, most of the chargers used in batteries are three-stage chargers, which are divided into three stages when charging the battery, namely constant current charging, constant voltage charging and trickle charging.

Etiquetes populars: 22.2 v lithium ion battery charger, China, suppliers, manufacturers, factory, custom, wholesale
